This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Amperion - SunStore will not be held liable for any product malfunctions as a result of incorrectly installed systems.

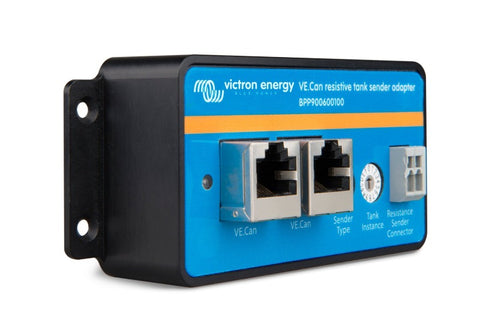

The Victron Energy VE.Can resistive tank sender adapter allows a standard resistive tank level sender to connect to a GX device. It is compatible with both European standard 0-180 Ohm and United States standard 240-30 Ohm tank level senders and is accurate to ±1%. It is easily configurable to resistive senders from fuel, fresh water, waste water, well water, oil and black water (sewage) tanks. It supports up to 16 tanks of each type. The unit is a simple setup with two small rotary switches and it gets its power from the VE.Can network.
When you use a Skylla-i or a MPPT with CAN bus in the system, the power to the CAN bus will be supplied by either one of them. When the CAN bus is not powered by a Skylla-I or a MPPT, you will need the Victron VE.Can Power Cable to supply the power.
Characteristics:
- - - - - - - - - |
High ±1% Accuracy Suits European standard Fuel, Freshwater, Wastewater, Oil, Live Well or Blackwater: tank type easily selectable with a rotary switch For multiple tanks, use multiple tank sender adapters in one network: up to 16 tanks of the same tank type Robust ABS Construction sealed to IP67 Easy to install Simple switch setup with no extra display required Under 50mA Power Usage Input voltage 9 to 70 VDC |
Connect the tank sender adapter to the rest of the network using standard straight Victron RJ-45 cable.
View Manual Victron VE.Can Resistive Tank Adapter
View Enclosure dimensions VE.Can Resistive Tank Adapter
