~ Please note: minimum order 3 panels ~
~ Contact us for orders below 3 panels ~
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Amperion - SunStore will not be held liable for product malfunctions due to incorrectly installed systems.
-
JA Solar is classified as a Tier-1 module manufacturer.

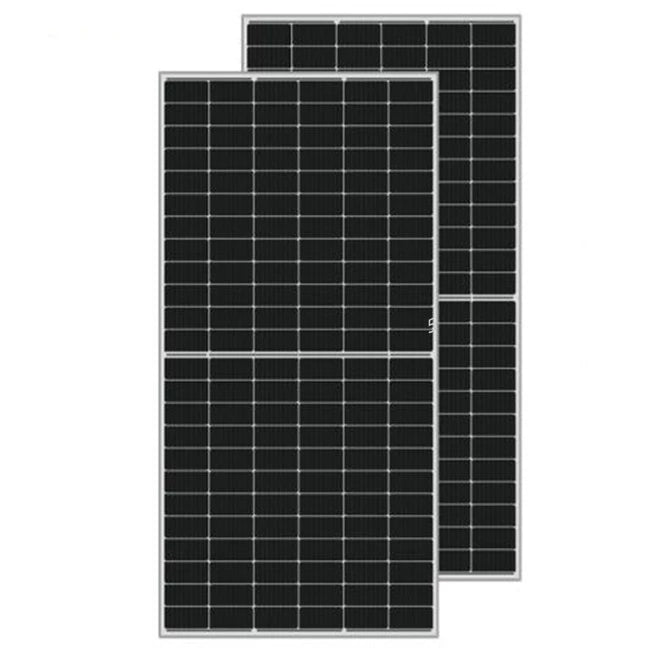

JA Solar 545 Wp Mono PERC Half-Cell MBB
JA Solar has been the world's leading cell producer since 2010 and has firmly established itself as a tier 1 module supplier since 2012.
Assembled with multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect, lower risk of hot sport, as well as enhanced tolerance for mechanical loading.
- Rating: 545 Wp
- Height x Width: 2,279 mm x 1,134 mm
- Efficiency: 20.7%
- Voc: 49.45 V
- Vmp: 41.47 V
- Imp: 12.9 A
- Isc: 13.79 A
- Weight: 28.6 kg
This is a mono-crystalline panel with higher efficiency (Click Here for a comparison between poly-crystalline and mono-crystalline panels).
- High output power
- Less shading effect
- Lower temperature coefficient
- Better mechanical loading tolerance
- 12-year product warranty
- 25-year linear power output warranty.
The panel comes supplied with MC4 connectors and 1200 mm long cables.
For tips on buying solar panels, click on this video link
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Amperion - SunStore will not be held liable for any product malfunctions as a result of incorrectly installed systems.
